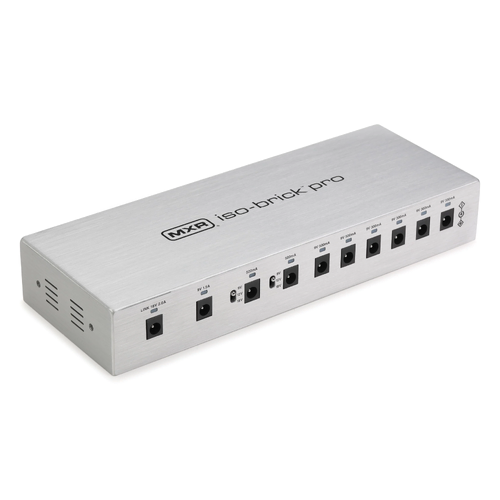

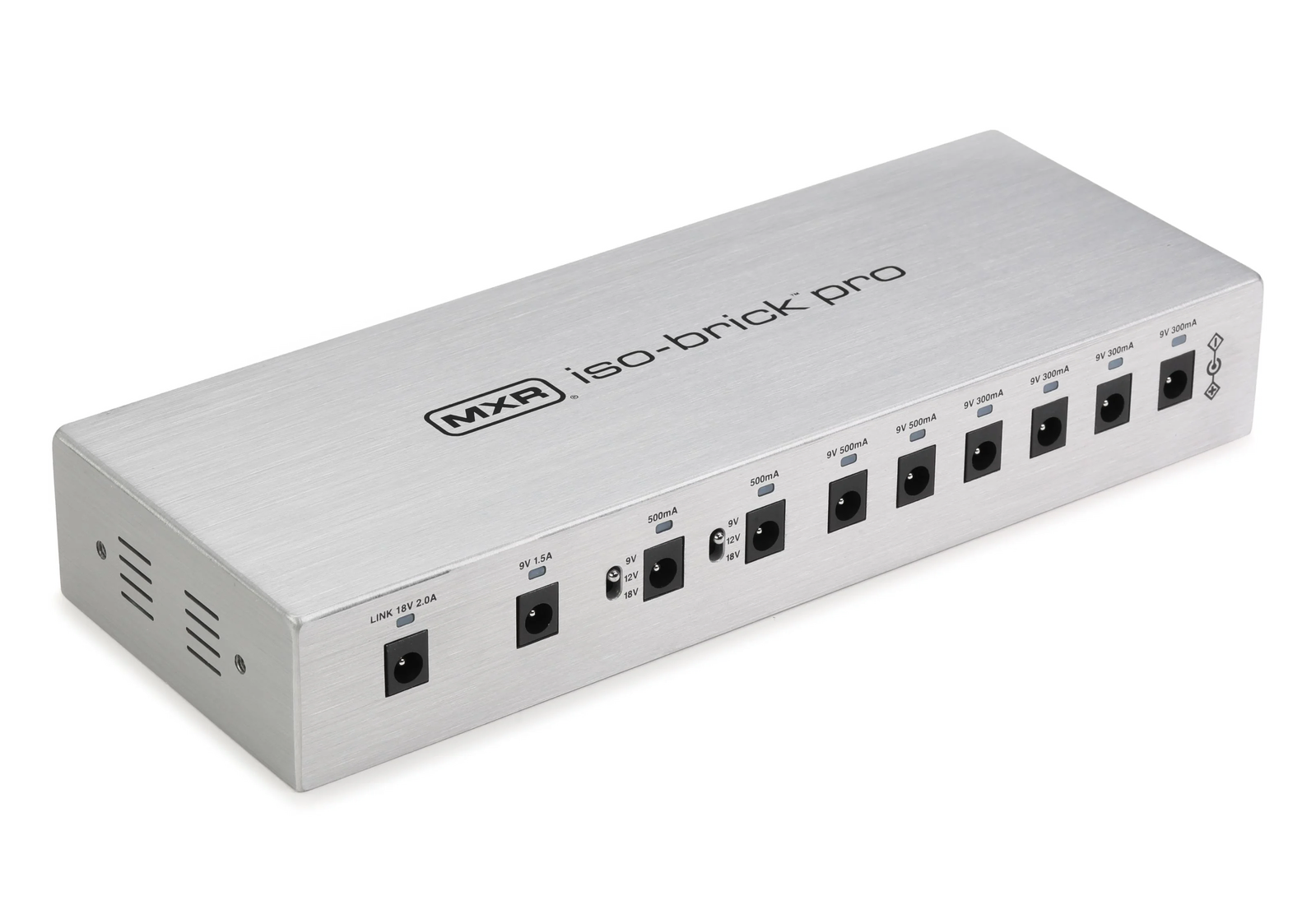

The MXR ISO-BRICK Pro is the simplest, easiest and safest way to supply multiple power options to a range of pedals. The low profile design features a light weight, pedalboard freindly compact unit supplying 10 fully isolated power outputs with clean, noise free DC power. A variety of voltage and current options from 6 fixed outputs, including 2 outputs at 9V DC 500 mA and 4 outputs at 9V DC 300mA, Two switchable outputs offer a 9/12/18V DC 500 mA range to accommodate everything from power-hungry digital workstations to typical overdrive boxes, a dedicated 9V DC 1.5A output is perfect for super-high-demand multi-effect boxes and a dedicated 18V DC 2A output allows for easy power supply linking. Built into a robust housing that includes a power on/off LED connection status. The MXR Iso-Brick Pro is the ideal way to keep your power noise free, safe and neat on your pedal board. Oxygen Music proudly ranges a great selection of pedal power supplies, including the MXR Iso-Brick Pro by Jim Dunlop M242. (Includes mounting brackets and screws for easy pedalboard installation, 10 DC cable connectors and IEC power cable)
(M242)
- Type:Pedalboard Power Supply

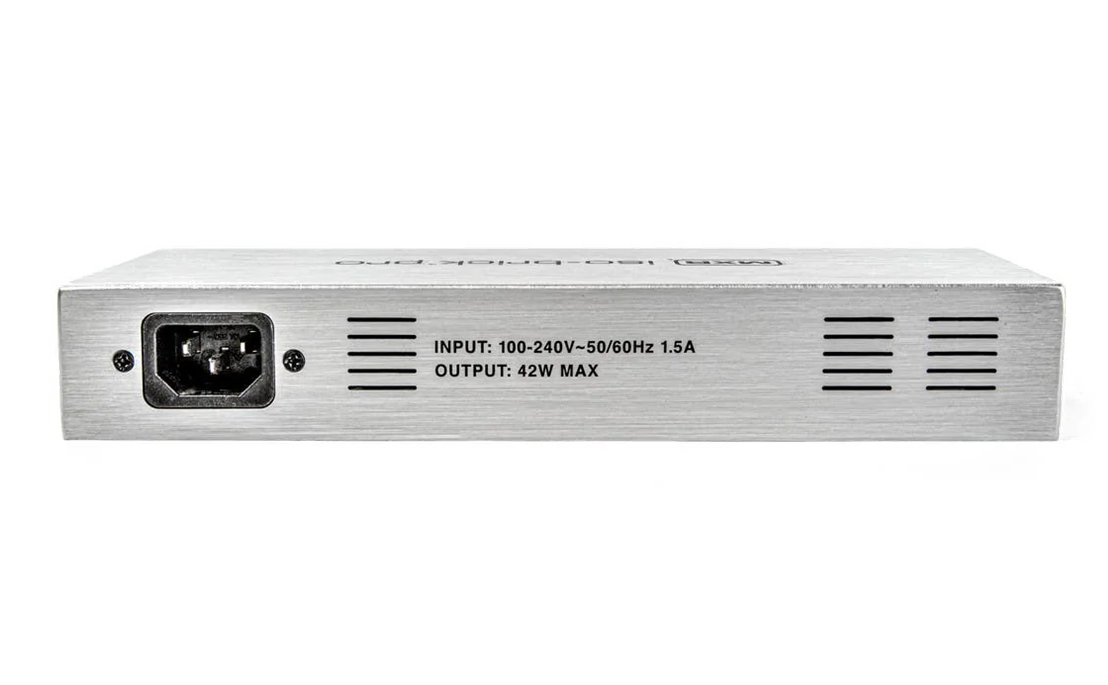

- Inputs:120V AC Standard IEC cable
- Outputs:4 x 9V DC 300mA, 2 x 9V DC 500mA, 2 x 9/12/18V DC 500mA, 1 x 9V DC 1.5A, 1 x 18V DC 2A
- Maximum Output Current:2A total
- Isolated Output:Yes
- Height:1.43"
- Width:9.25"
- Depth:3.43"
- Weight:1.9 lbs.
- Manufacturer Part Number:M242
| SKU | M242 |
| Brand | MXR |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.001600000m3 |
