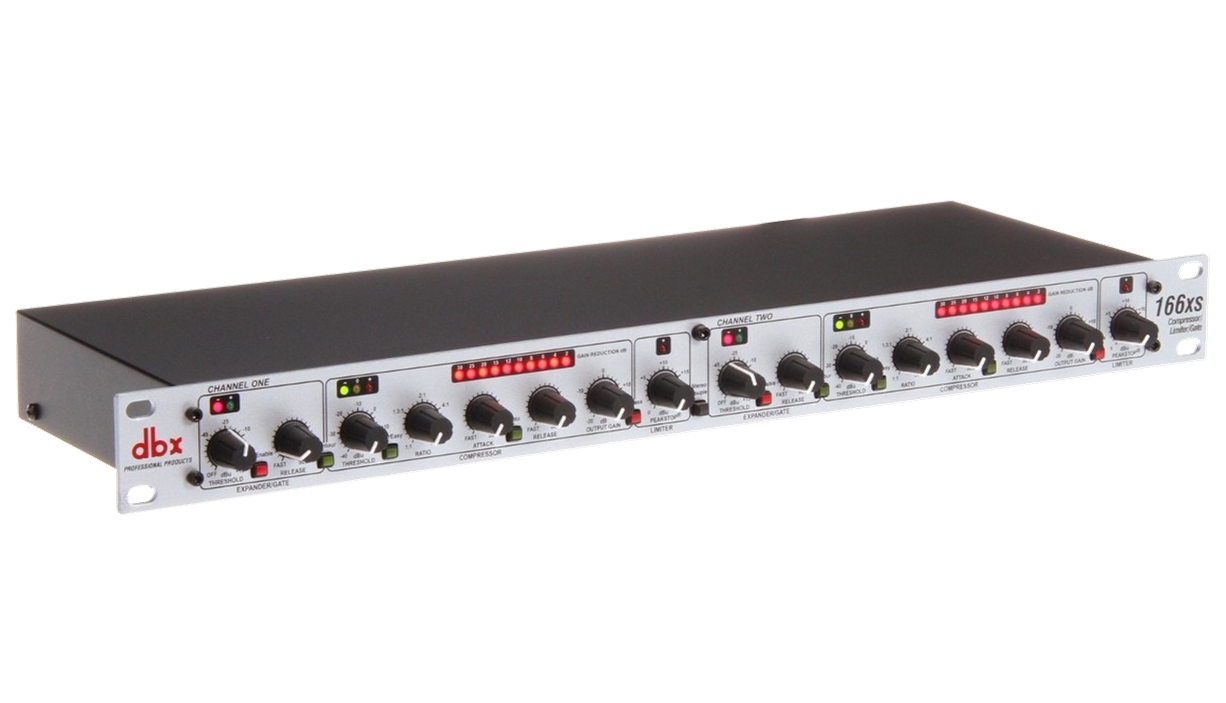

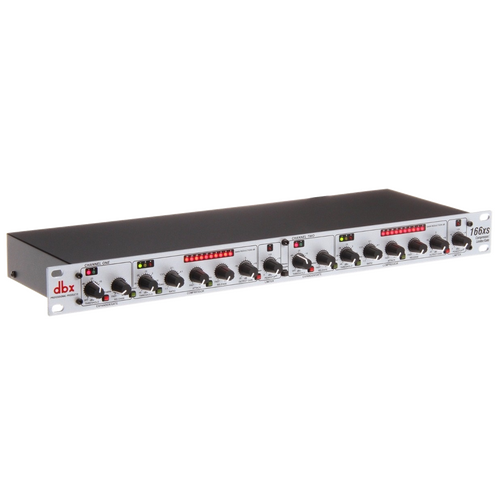

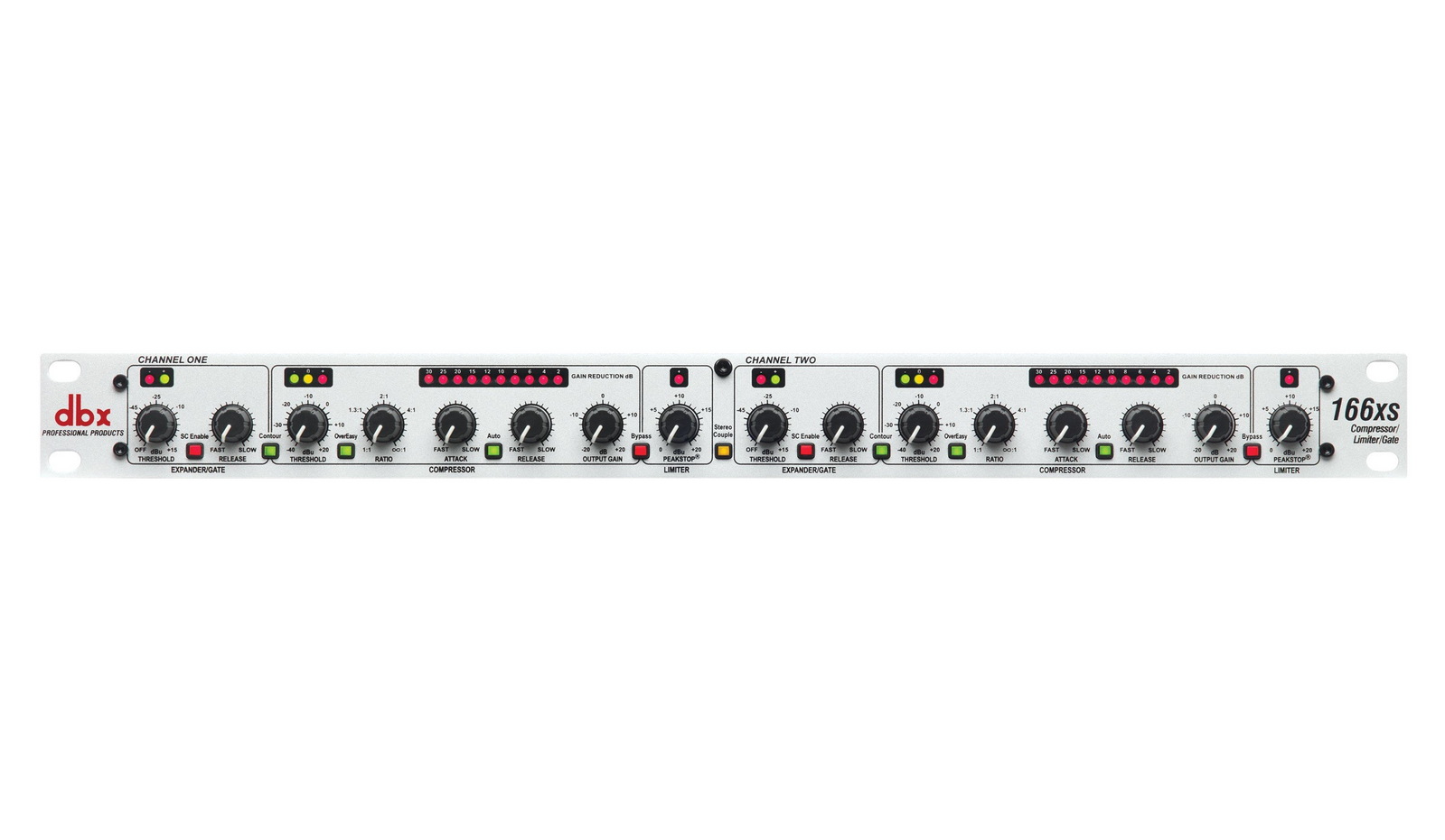

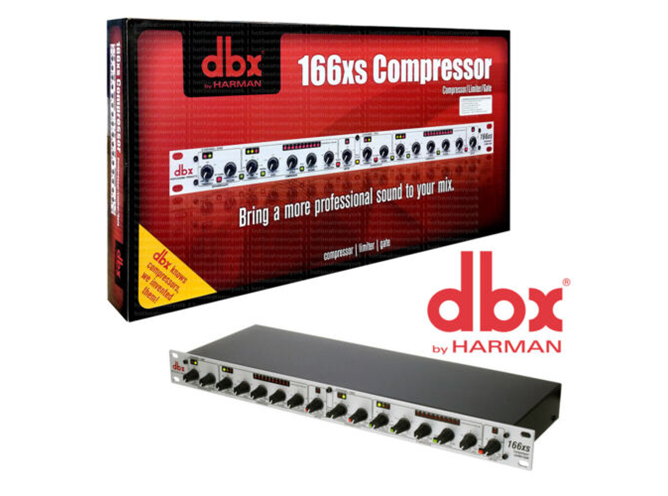

DBX 166XS Professional Compressor/Limiter/Gate Rack Unit

SKU: DBX-166XS

$449.00


In Stock




Calculate Shipping



Contact us for shipping quote - $0.00
Contact us on 03 5223 1724 for a shipping quote.
FREE Pick Up In Store - $0.00
Pick up from: 261 Moorabool Street, Geelong Vic 3220

From the inventors of the compressor, this DBX 166XS Compressor/Limiter/Gate packs a lot of punch and dynamic control into your mixes whether in the studio or stage. Built and designed to be a tough workhorse to your set up, the DBX-166XS features Overeasy® compression technology providing smooth and musical performance while the AutoDynamic™ attack and release controls, found only on dbx compressors, puts great sound within easy reach. The DBX166xs can operate in stereo or dual-mono modes, has true RMS power summing and features quality XLR and 1/4" TRS inputs and outputs and Sid Chain insert. The program-adaptive expander/gates with new gate timing algorithms ensure the smoothest release characteristics, separate precision LED displays for gain reduction metering, compression threshold and gate threshold allow quick, accurate setup, bringing loads of punch to vocal, drums or an overall mix. The DBX166XS is one piece of hardware you must have in your rack set up. Oxygen Music stocks a great range of DBX products including the DBX166XS Compressor/Limiter/Gate.

(DBX-166XS)

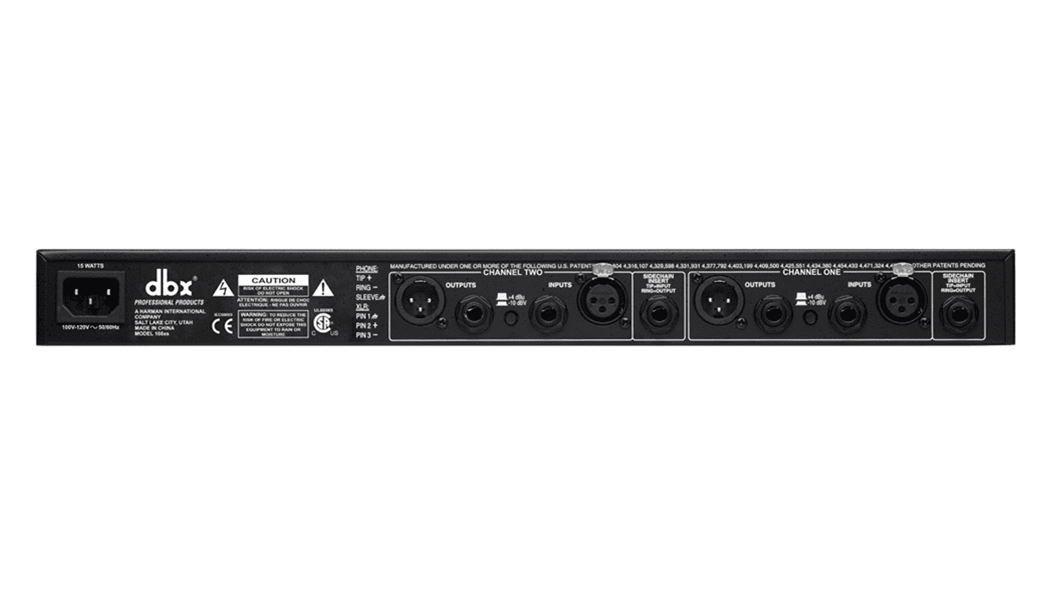

Input Connectors 1/4" TRS, female XLR (pin 2 hot)
Input Impedance >50kΩ balanced, >25kΩ unbalanced
Max Input >+24dBu, Balanced or Unbalanced
Input Type Electronically balanced/unbalanced, RF filtered
Sidechain 1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
Sidechain Impedance Tip = >10kΩ (Input), Ring = 2kΩ (Output)
Sidechain Max Input Level >+20dBu (tip/input); >+20dBu (ring/output)
Output Connectors 1/4" TRS, male XLR (pin 2 hot)
Output Impedance 120Ω balanced, >60Ω unbalanced
Max Output +21dBu balanced/unbalanced into 2kΩ or greater; >+18 dBm balanced/unbalanced (into 600Ω)
Frequency Response 20Hz - 20kHz; +0, -0.5dB, Typical 3dB points are 0.35Hz and 110kHz, unity gain
Noise <-90dBu, 22Hz to 22kHz, no weighting, unity gain
THD+Noise Typically <0.04%; Any Amount of Compression Up to 40dB@1kHz
IMD Typically <0.08% SMPTE @ +10dBu (15dB Gain reduction)
Compressor Threshold Range -40dBu to +20dBu
Compressor Threshold Characteristic Selectable OverEasy® or hard knee
Compressor Ratio Variable; 1:1 to Infinity:1; 60dB Maximum Compression
Compressor Attack Time Variable program-dependent; 3ms to 340ms for 15dB gain reduction
Compressor Release Time Variable program-dependent; 200dB/Sec to 3dB/Sec
Expander/Gate Threshold Range OFF to +15dBu
Expander/Gate Ratio 10:1
Expander/Gate Max Depth >60dB
Expander/Gate Attack Time <500µs (from Maximum Depth)
Expander/Gate Release Time Adjustable, 30ms to 3sec (to 30dB attenuation)
Limiter Threshold Range 0dBu to +20dBu
CMRR >40dB, typically >55dB at 1kHz
Interchannel Crosstalk <-80dB, 20Hz to 20kHz
Dynamic Range >115 dB, unweighted
Stereo Coupling True RMS Power Summing™
Power Consumption 15 Watts Maximum
Operating Temperature 0°C to 45°C (32°F to 113°F)
Dimensions 1.75" x 19" x 6.75" (4.45 cm x 48.2 cm x 17.15 cm)
Unit Weight 5.05 lb (2.29 kg)
Shipping Weight 7.20 lb (3.27 kg)
Reference 0dBu = 0.775Vrms
Operating Voltage 100 VAC 50/60Hz; 120VAC 60Hz; 230 VAC 50/60 Hz
SKU DBX-166XS
Brand DBX
Shipping Weight 3.6000kg
Shipping Width 0.450m
Shipping Height 0.150m
Shipping Length 0.450m
Shipping Cubic 0.030375000m3
